Mounting Tabs for Metal-Backed Strip Brush, Inverted Coils and Cup Seals

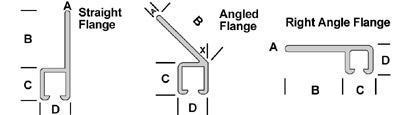

Mounting TabsMounting tabs are ideal for mounting inverted coils and cup seals when formed holders are not possible. SEALEZE® aluminum brush holders are cut into tab lengths of 0.5 or 0.375 inches and are available with or without mounting holes. Straight, angled, and right angle flange tabs are available for each channel size as shown in the following table.

For assistance in selecting the mounting configuration for your application, contact a SEALEZE® Sales Representative.

To email us your application information, click here. Or, call 1-800-787-7325

SectionStraight Flange
 XABCD
A 180° 0.040 0.446 0.212 0.197
B 180° 0.062 0.427 0.264 0.267
B 180° 0.062 0.735 0.265 0.262
C 180° 0.050 0.439 .0311 0.292
C 180° 0.050 0.750 0.311 0.292
C 180° 0.050 1.500 0.311 0.292
C 180° 0.055 3.000 0.311 0.292
D 180° 0.062 0.711 0.391 0.366
D 180° 0.062 3.00 0.391 0.366
F 180° 0.062 1.000 0.474 0.469
F 180° 0.062 1.500 0.474 0.469
G 180° 0.062 0.784 0.528 0.505
G 180° 0.062 1.472 0.528 0.505
G 180° 0.079 4.894 0.576 0.539
SectionRight Angled Flange
 XABCD
A 90° 0.056 0.347 0.204 0.220
B 90° 0.055 0.423 0.266 0.264
B 90° 0.055 1.250 0.266 0.264
C 90° 0.060 0.663 0.303 0.331
D 90° 0.062 0.697 0.365 0.391
F 90° 0.062 1.000 0.469 0.474
G 90° 0.062 0.873 0.505 0.528
SectionAngled Flange
 XABCD
A 40° 0.040 0.375 0.212 0.197
A 40° 0.062 0.750 0.225 0.213
B 15° 0.062 0.768 0.265 0.262
B 30° 0.062 0.862 0.265 0.262
C 45° 0.050 1.250 0.311 0.292
D 45° 0.062 0.844 0.391 0.366
D 45° 0.062 1.890 0.391 0.366
D 45° 0.062 1.000 0.391 0.366
F 45° 0.062 1.500 0.469 0.474
G 45° 0.062 1.000 0.528 0.505

Click here to download a worksheet for Mounting Tabs (pdf)
